Creating Web Applications with HTML5 WebSockets



WebSockets enables the real-time web where the information is available to the user the moment it is published. WebSockets are standard based, Interoperable across browsers and very simple to use. We got the WebSockets support everywhere it is available on browsers, windows run time, WCF, ASP, IIS etc. This post gives you the basic idea about WebSockets and the technicalities behind this concept.

There is a deep desire for speed to get the information as quickly as possible.

Typical examples where user wants to see the information in real time

  • Stock Market data
  • Live Scores
  • Airline Location
  • Twitter Search Results
  • Interactive games

The Problem

HTTP is a state less protocol where server can communicate with client only once per request received. Real time web needs asynchronous communication with client.

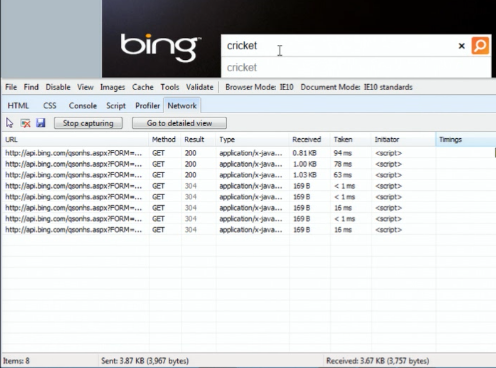

In the above example when you are 7 letters of text and sending to the server , it actually sending the 4kb of data to the server. We can do better and it clearly tells us the HTTP is not adequate for the real-time web.

Solution

WebSocket – is an enabler of the real-time web. Sockets are full-duplex bi-directional protocol. These Sockets are not directly available to the developers. So we need richness of Sockets  and reach of Web.  All together called WebSockets.

WebSockets Characteristics

  • Full duplex bidirectional communication
  • Supports unsecure(TCP) and secure(HTTPS) channels
  • It can traverse proxies and firewalls
  • It keeps the connection alive

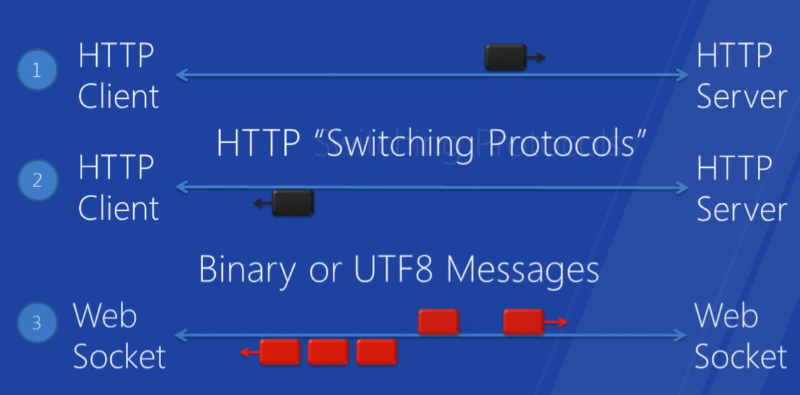

Step1: You start the communication with HTTP and tells the server you want to do the communication using sockets.

Step2: The server checks and accepts the request then it starts the socket communication. At this stage both of them drop-down to start communication using sockets.

How the protocol operates?

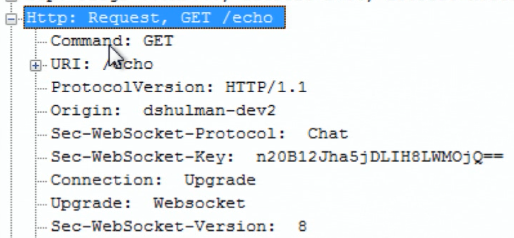

The request from client looks like as below


It basically saying it supports websocket communication. The security key in the header is to both side to understand the sockets.

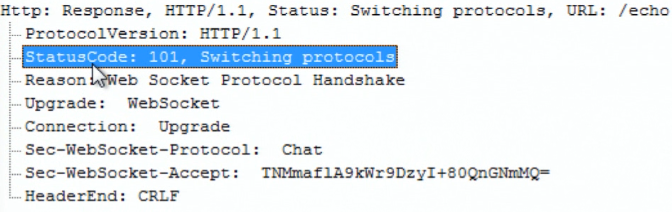

The Response from the server looks like below

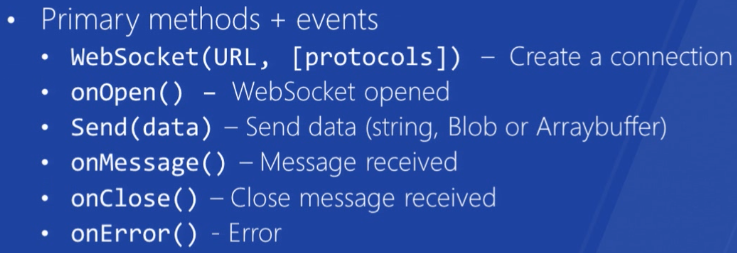

WebSocket API it is defined in W3C Primary methods and events are as below


You have the call-back method if connection is opened or if you connection is closed or message is received.

The request URI in this communication looks as below


notice it has a special scheme name WS , ws indicates to the browser this is not something that not goes through the wire and says it is web sockets request is coming on and you need to do the HTTP hand shake down before actual communication start. ws never goes on the wire, it is HTTP that goes on the wire.

Creating a WebSocket is simple

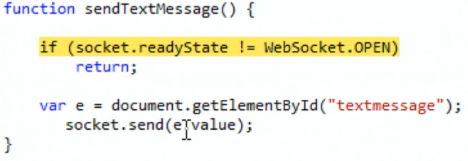

Sending a Text message using this socket

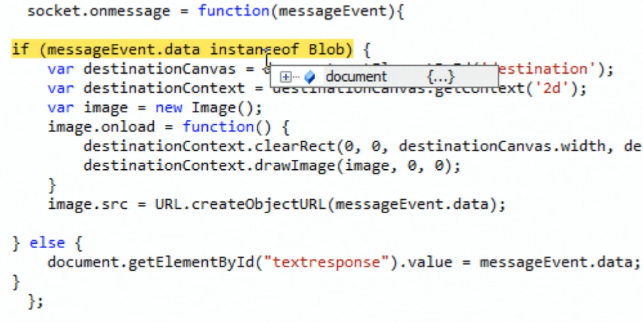

Capturing the server response in onmessage event  as below


WebSockets is an emerging standard which enables secure, real-time , bi-directional communication across the web. Microsoft supporting this in IE10, Windows 8 Apps, IIS, ASP.NET and WCF.
